Electrolysis is the process of using electrical energy to drive a non-spontaneous chemical reaction. It is one of the most important techniques in chemistry and industry, enabling the decomposition of compounds, purification of metals, production of chemicals, electroplating, and the generation of gases such as hydrogen and oxygen. Electrolysis forms the foundation of many modern technologies, from aluminum production to water splitting for clean hydrogen fuel.
Key Takeaways: Electrolysis
- Electrolysis uses electrical energy to force a chemical reaction that would not occur spontaneously.
- The process occurs in an electrolytic cell containing an electrolyte and two electrodes connected to a power source.
- Oxidation occurs at the anode and reduction occurs at the cathode.
- Positive ions (cations) move toward the cathode, while negative ions (anions) move toward the anode.
- The minimum voltage needed to initiate electrolysis is called the decomposition potential.
- Faraday’s laws relate the amount of substance produced to the quantity of electricity passed through the cell.
- Electrolysis is used in metal extraction, electroplating, water purification, chemical manufacturing, and hydrogen production.
What Is Electrolysis?
Electrolysis is the use of an electric current to drive a chemical reaction that is thermodynamically non-spontaneous.
The process converts electrical energy into chemical energy. When an external voltage is applied across two electrodes immersed in an electrolyte, ions move through the solution or molten material and undergo oxidation-reduction (redox) reactions at the electrode surfaces.
For example, passing electricity through water can decompose it into hydrogen and oxygen gases:
2H₂O(l) → 2H₂(g) + O₂(g)
Without the external electrical energy supplied by a power source, this reaction does not occur to any significant extent under normal conditions.
History of Electrolysis
Electrolysis developed alongside the early understanding of electricity and electrochemistry.
In 1800, Italian physicist Alessandro Volta invented the voltaic pile, the first practical battery. This device provided a continuous source of electric current and made electrolysis experiments possible.
Shortly afterward, English chemists William Nicholson and Anthony Carlisle demonstrated the electrolysis of water, producing hydrogen and oxygen gases.
In the early nineteenth century, Humphry Davy used electrolysis to isolate several reactive metals, including potassium, sodium, calcium, magnesium, and barium. His work demonstrated the power of electricity as a tool for chemical discovery.
Later, Michael Faraday established the quantitative laws of electrolysis. These laws connected the amount of chemical change to the quantity of electric charge passed through an electrolytic cell.
Today, electrolysis remains essential in industrial chemistry, metallurgy, and emerging clean-energy technologies.
Timeline of Electrolysis
- 1800: Alessandro Volta invents the voltaic pile.
- 1800: Nicholson and Carlisle perform the first electrolysis of water.
- 1807: Humphry Davy isolates potassium and sodium by electrolysis.
- 1808: Davy isolates calcium, magnesium, strontium, and barium.
- 1834: Michael Faraday publishes the laws of electrolysis.
- 1886: The Hall-Héroult process revolutionizes aluminum production.
- 1890s: Commercial chlor-alkali electrolysis becomes widespread.
- 20th century: Electrolysis becomes central to metal refining and electroplating.
- 21st century: Electrolysis gains renewed importance for green hydrogen production.
Etymology of the Term
The word electrolysis comes from Greek roots:
- electron = amber (associated with electricity)
- lysis = loosening, splitting, or decomposition
The term was introduced by Michael Faraday in the 1830s to describe chemical decomposition caused by electric current.
Faraday also introduced several related terms still used today:
- Electrode – conductor through which current enters or leaves a cell
- Anode – electrode where oxidation occurs
- Cathode – electrode where reduction occurs
- Electrolyte – ion-containing substance that conducts electricity
- Ion – charged particle that migrates during electrolysis

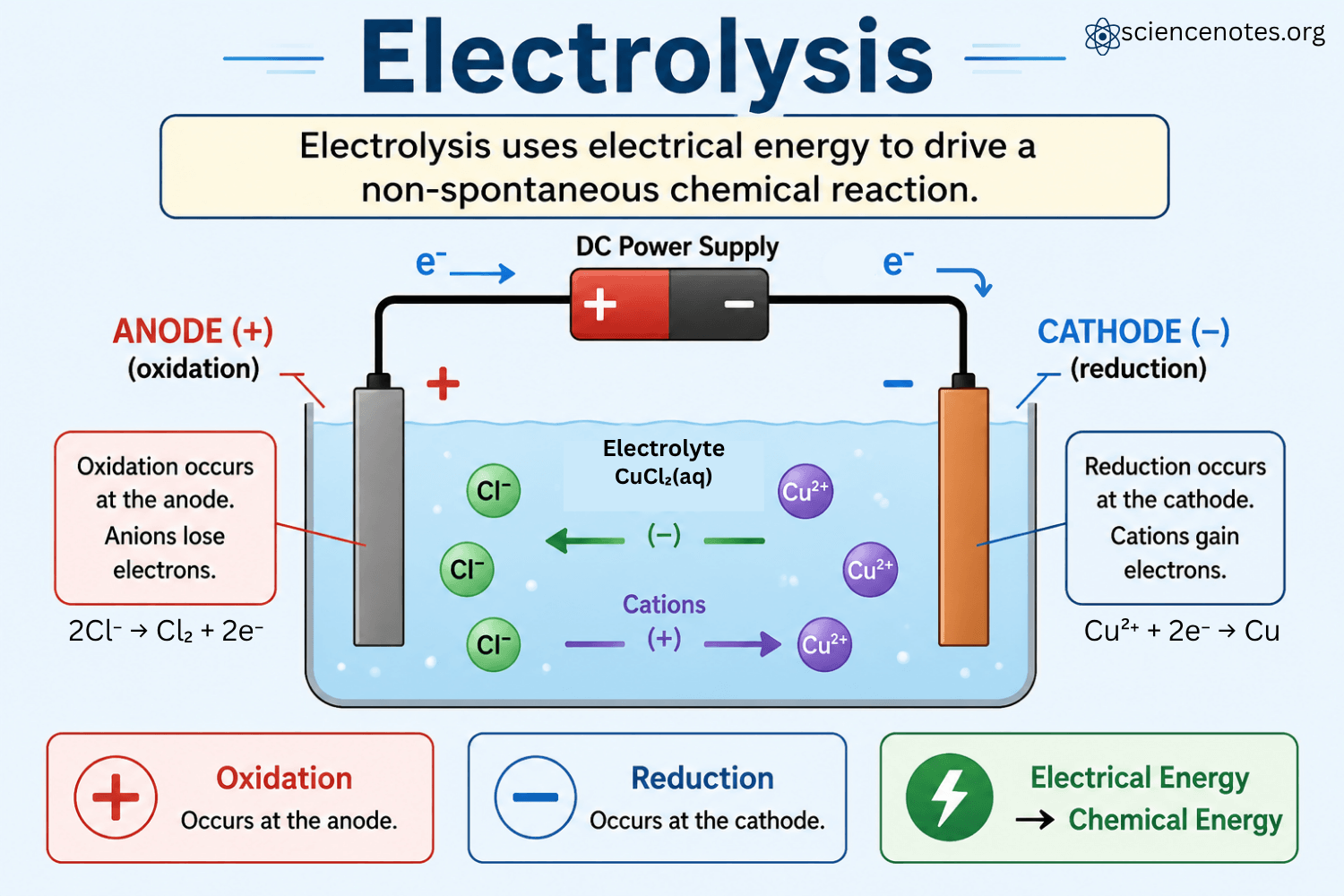

Components of an Electrolysis Setup
A typical electrolytic cell contains four essential components.
Power Supply
An external source of direct current (DC) provides the electrical energy needed to drive the reaction.
Electrodes
Two conductive electrodes connect the power source to the electrolyte.
Anode
- Connected to the positive terminal
- Site of oxidation
- Attracts anions
Cathode
- Connected to the negative terminal
- Site of reduction
- Attracts cations
Electrolyte
The electrolyte contains mobile ions capable of carrying electrical charge.
Examples include:
- Molten sodium chloride
- Sulfuric acid solution
- Copper sulfate solution
- Molten aluminum oxide dissolved in cryolite
External Circuit
The external wires complete the electrical circuit and allow electrons to flow between the power source and electrodes.
How Electrolysis Works
Electrolysis involves the coordinated movement of electrons and ions.
Step 1: Apply Voltage
A power source creates a potential difference between the electrodes.
Step 2: Ion Migration
Charged ions move through the electrolyte:
- Cations migrate toward the cathode.
- Anions migrate toward the anode.
Step 3: Electron Transfer
At the electrode surfaces, ions gain or lose electrons.
Step 4: Chemical Products Form
The resulting oxidation and reduction reactions generate products such as:
- Metals
- Gases
- New ions
- Molecular compounds
The overall reaction is the sum of the two electrode half-reactions.
Oxidation and Reduction at the Electrodes
A useful mnemonic is:
AnOx, RedCat
- Anode = Oxidation
- Cathode = Reduction
At the Anode
Oxidation involves electron loss.
Example:
2Cl⁻ → Cl₂(g) + 2e⁻
Chloride ions lose electrons and form chlorine gas.
At the Cathode
Reduction involves electron gain.
Example:
Cu²⁺ + 2e⁻ → Cu(s)
Copper ions gain electrons and deposit as metallic copper.
Decomposition Potential
The decomposition potential is the minimum voltage required to sustain electrolysis.
In theory, this voltage equals the difference between the relevant electrode potentials. In practice, a higher voltage is needed because of:
- Overpotential (activation energy barriers)
- Electrical resistance in the electrolyte
- Electrode surface effects
- Concentration polarization
For example, water electrolysis has a theoretical minimum voltage of about 1.23 V under standard conditions, but practical systems typically require around 1.8–2.2 V or more.
Energy Changes During Electrolysis
Electrolysis converts electrical energy into chemical potential energy.
The electrical work supplied is:
W = VQ
where:
- W = electrical energy (J)
- V = voltage (V)
- Q = charge (C)
Because electrolysis drives non-spontaneous reactions:
- ΔG is positive
- External energy input is required
- Chemical products store energy that can later be released
For example, hydrogen produced by water electrolysis stores chemical energy that can later generate electricity in a fuel cell.
Faraday’s Laws of Electrolysis
Faraday discovered that chemical change during electrolysis depends directly on the amount of electric charge transferred.
First Law
The mass of substance produced is proportional to the charge passed.
m ∝ Q
Since:
Q = It
where:
- Q = charge (C)
- I = current (A)
- t = time (s)
the amount produced increases with both current and time.
Second Law
For the same charge, the amount of material produced depends on the number of electrons required by the reaction.
Faraday Constant
One mole of electrons carries:
F = 96,485 C mol⁻¹
This value is called the Faraday constant.
Useful Equation
m = (MIt)/(nF)
where:
- m = mass produced
- M = molar mass
- I = current
- t = time
- n = electrons transferred
- F = Faraday constant
Worked Example 1: Copper Electroplating
A current of 2.50 A passes through a CuSO₄ solution for 1.00 hour. How much copper is deposited?
Step 1: Calculate Charge
Q = It
Q = (2.50 A)(3600 s)
Q = 9000 C
Step 2: Determine Moles of Electrons
mol e⁻ = 9000/96485
= 0.0933 mol
Step 3: Use Stoichiometry
Reaction:
Cu²⁺ + 2e⁻ → Cu
mol Cu = 0.0933/2
= 0.0467 mol
Step 4: Convert to Mass
mass = (0.0467 mol)(63.55 g/mol)
= 2.97 g
Answer: 2.97 g of copper deposits.
Worked Example 2: Hydrogen Production
What volume of hydrogen gas at STP is produced when 19,297 C passes through acidified water?
Step 1: Calculate Moles of Electrons
mol e⁻ = 19297/96485
= 0.200 mol
Step 2: Use Stoichiometry
Cathode reaction:
2H⁺ + 2e⁻ → H₂
mol H₂ = 0.200/2
= 0.100 mol
Step 3: Convert to Volume
At STP:
1 mol gas = 22.4 L
Volume = (0.100)(22.4)
= 2.24 L
Answer: 2.24 L H₂
Variations of Electrolysis
Several forms of electrolysis are used in industry and research.
Molten-Salt Electrolysis
The electrolyte is molten rather than dissolved in water.
Examples:
- Sodium production from molten NaCl
- Aluminum production from molten Al₂O₃
Aqueous Electrolysis
The electrolyte is dissolved in water.
Examples:
- Copper electroplating
- Water electrolysis
Membrane Electrolysis
Ion-selective membranes separate products and improve efficiency.
Examples:
- Chlor-alkali process
- Proton-exchange membrane (PEM) electrolyzers
High-Temperature Electrolysis
Uses elevated temperatures to reduce electrical energy requirements.
Examples:
- Solid oxide electrolyzer cells (SOECs)
Uses and Applications of Electrolysis
Metal Extraction
Electrolysis extracts highly reactive metals from ores.
Examples:
- Aluminum
- Sodium
- Magnesium
Electrorefining
Purifies metals to extremely high purity.
Examples:
- Copper
- Silver
- Gold
Electroplating
Deposits thin metal coatings onto surfaces.
Examples:
- Chrome plating
- Nickel plating
- Gold plating
Chemical Manufacturing
Electrolysis produces important industrial chemicals.
Examples:
- Chlorine
- Sodium hydroxide
- Hydrogen
Water Treatment
Electrochemical systems help disinfect water and remove contaminants.
Hydrogen Production
Water electrolysis is a key technology for renewable energy storage and green hydrogen production.
Common Misconceptions About Electrolysis
Electrolysis and Electroplating Are the Same Thing
Electroplating is one application of electrolysis. Many electrolysis processes decompose compounds or purify materials rather than coat surfaces.
Electrons Travel Through the Electrolyte
Electrons travel through the external circuit. Ions carry charge through the electrolyte.
The Anode Is Always Positive
In an electrolytic cell, the anode is positive. In a galvanic (voltaic) cell, the anode is negative. The defining feature is oxidation, not charge.
Water Always Produces Hydrogen and Oxygen
Other ions may be discharged preferentially depending on concentration, electrode material, and applied voltage.
More Voltage Always Means Better Efficiency
Excess voltage increases energy consumption and can lower overall efficiency due to heat losses and side reactions.
FAQs
What is a simple definition of electrolysis?
Electrolysis is the use of electricity to force a chemical reaction that would not occur spontaneously.
Why is electrolysis considered a redox process?
Electrolysis always involves oxidation at the anode and reduction at the cathode, making it an oxidation-reduction reaction.
What is the difference between electrolysis and a galvanic cell?
Electrolysis consumes electrical energy to drive a reaction, while a galvanic cell produces electrical energy from a spontaneous reaction.
Why is direct current used in electrolysis?
Direct current maintains fixed electrode polarity, allowing oxidation and reduction to occur continuously at the correct electrodes.
What determines the amount of product formed?
According to Faraday’s laws, the amount produced depends on the total electric charge passed through the cell and the number of electrons involved in the electrode reaction.
Is electrolysis environmentally friendly?
It depends on the source of electricity. Electrolysis powered by renewable energy can produce low-carbon hydrogen and other chemicals with minimal greenhouse gas emissions.
References and Further Reading
- Atkins, Peter (1997). Physical Chemistry (6 ed.). New York: W.H. Freeman and Company.
- Blum, W.; Vinal, G. W. (1934). “The Definition of Polarization, Overvoltage and Decomposition Potential”. Transactions of the Electrochemical Society. 66: 359. doi:10.1149/1.3498105
- Fabbri, Emiliana; Schmidt, Thomas J. (2018). “Oxygen Evolution Reaction—The Enigma in Water Electrolysis”. ACS Catalysis. 8 (10): 9765–9774. doi:10.1021/acscatal.8b02712
- Hall, Norris F. (1952). “A Textbook of Quantitative Inorganic Analysis (Vogel, Arthur I.)”. Journal of Chemical Education. 29 (6): 319. doi:10.1021/ed029p319.1
- Oesper, Ralph; Speter, Max (1937). “The Faraday-Whewell correspondence concerning electro-chemical terms”. The Scientific Monthly. 45 (6): 535–546.
