Electron Shell Diagrams of the 118 Elements

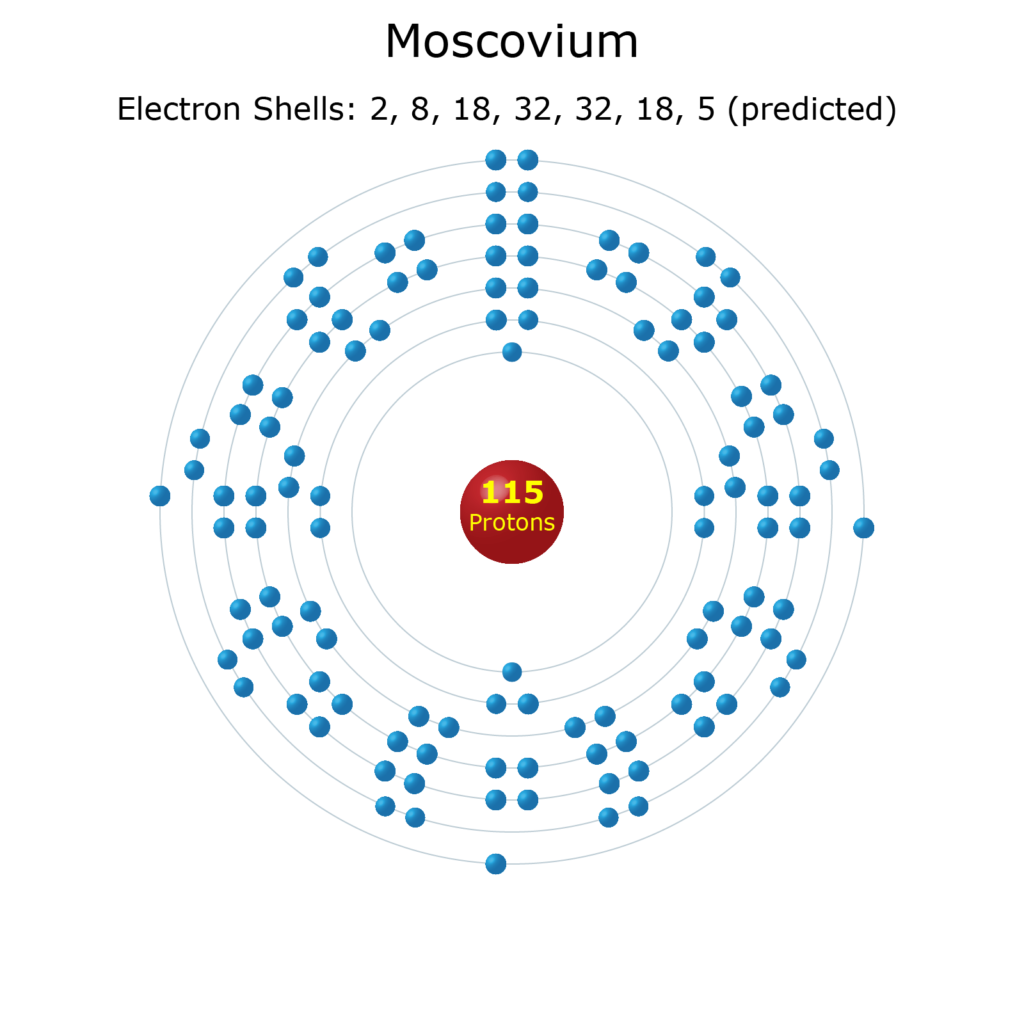

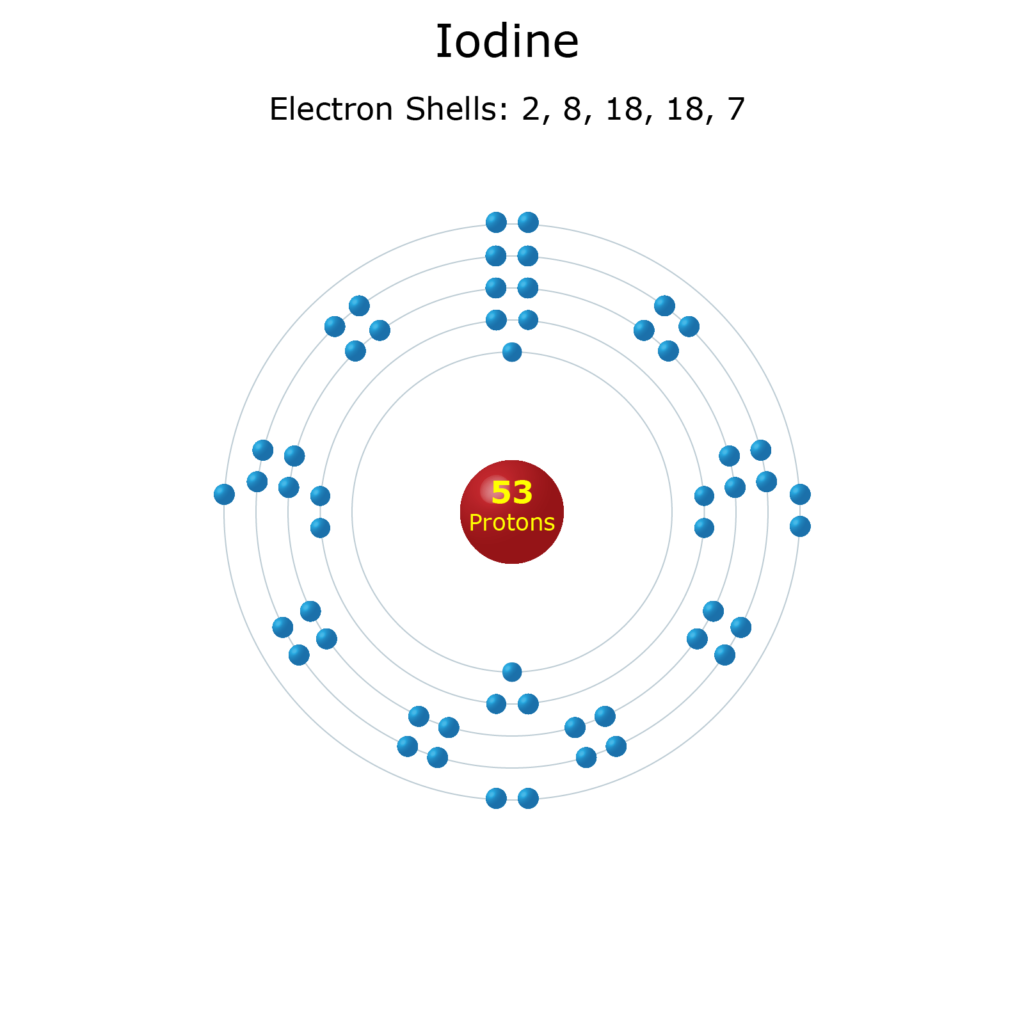

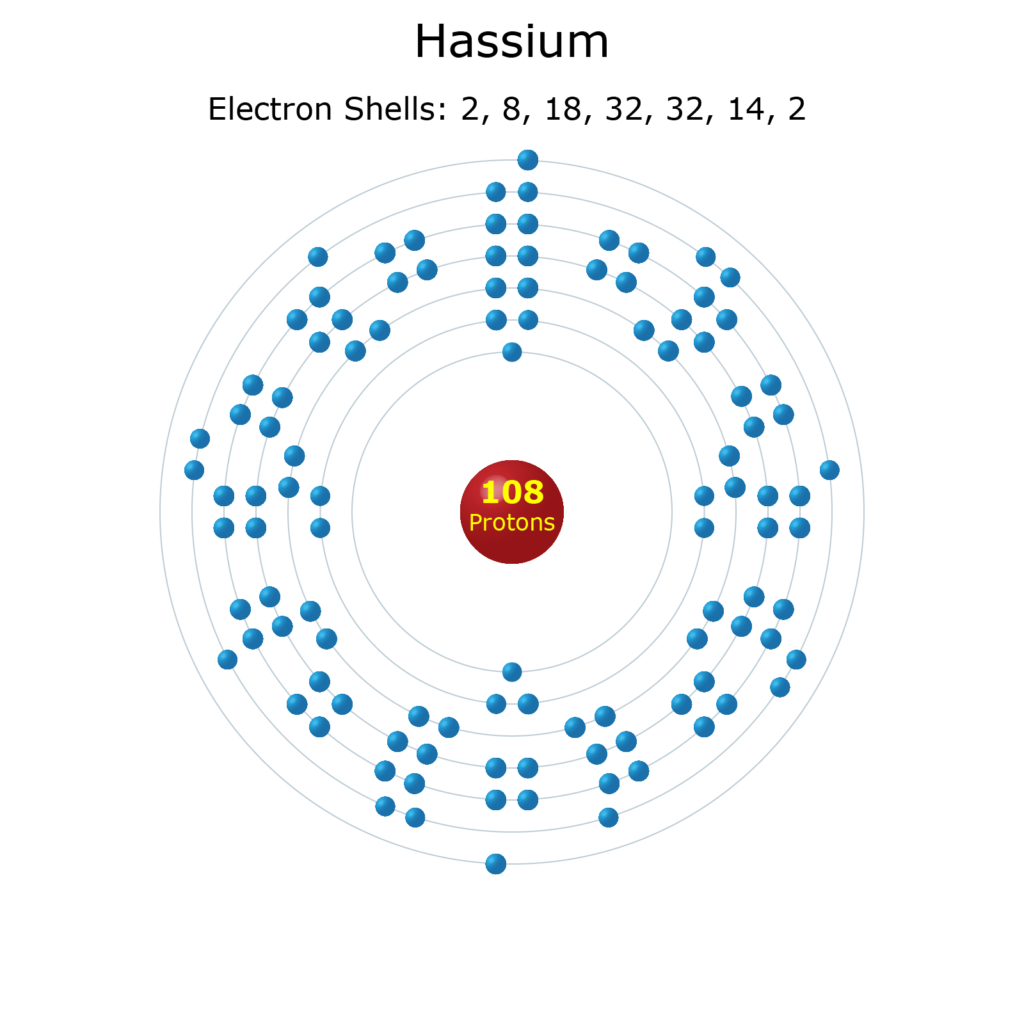

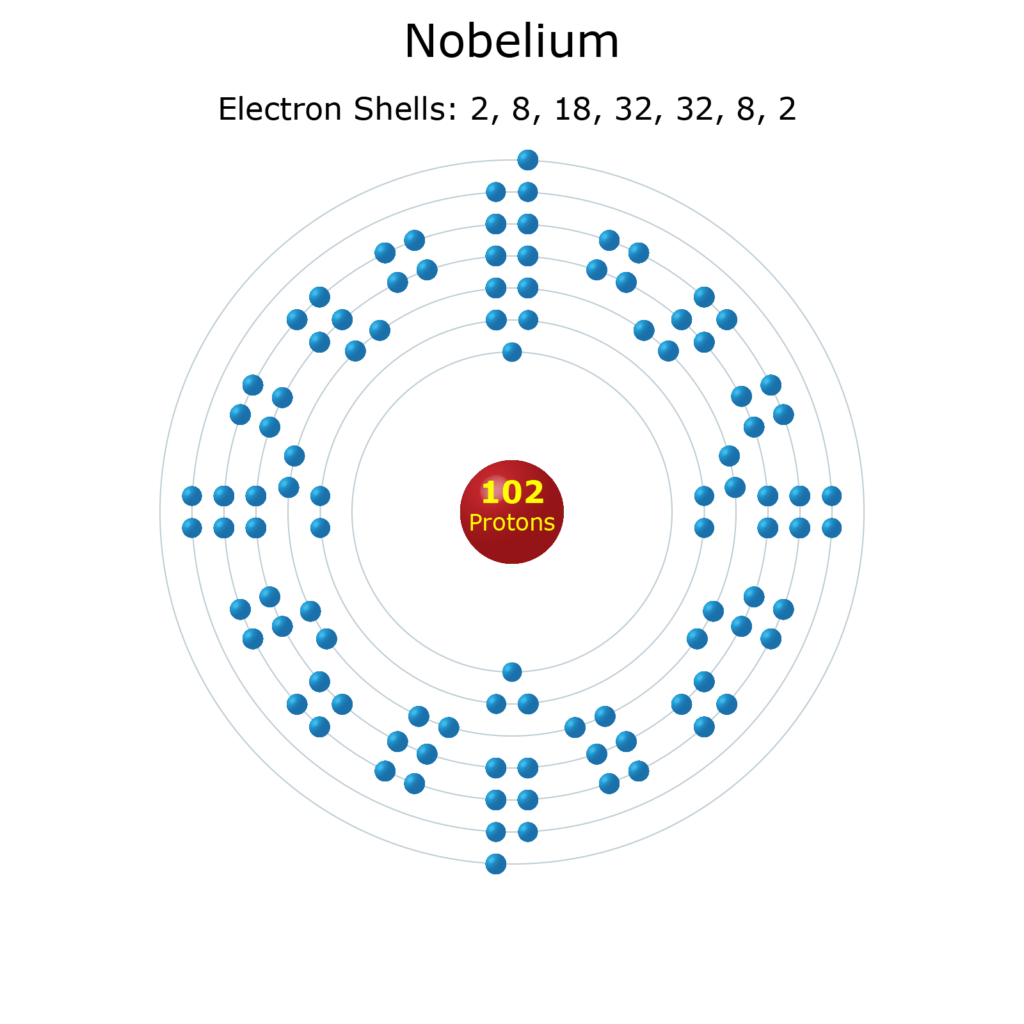

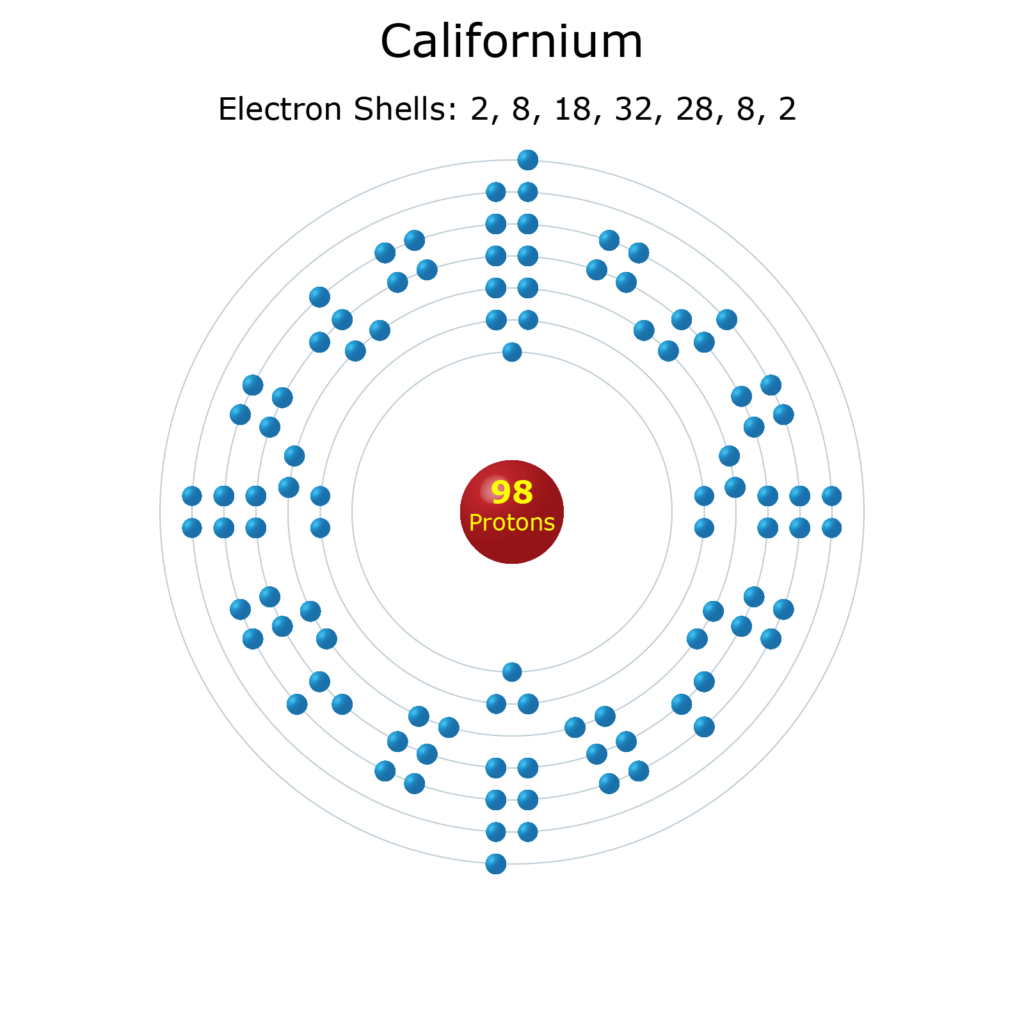

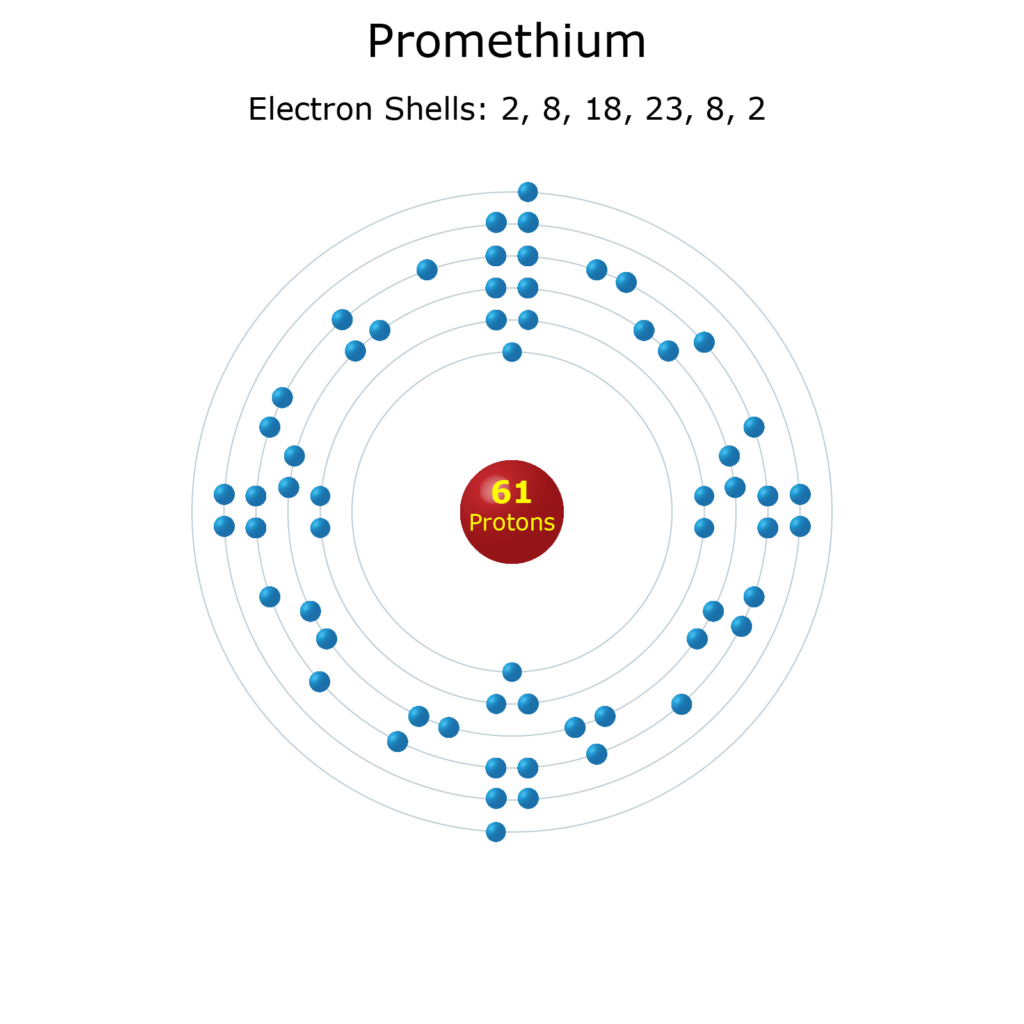

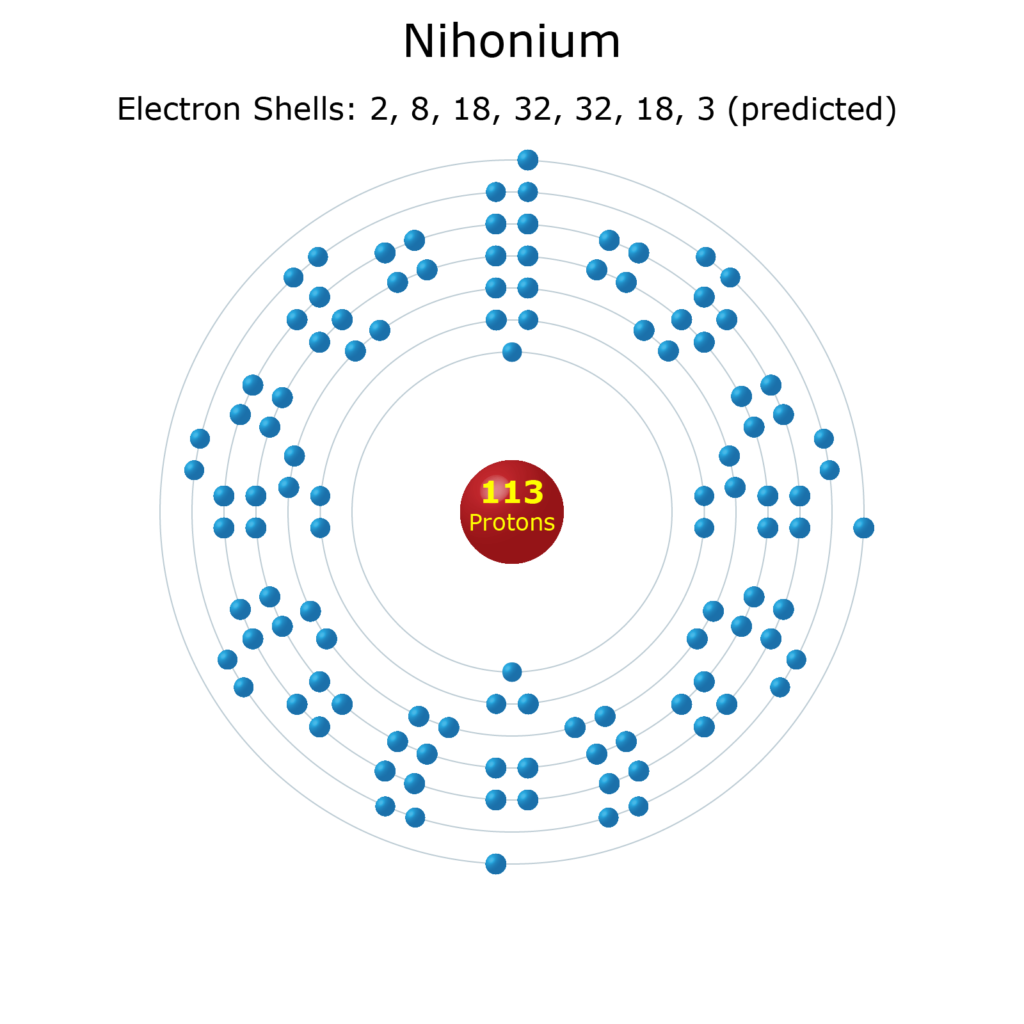

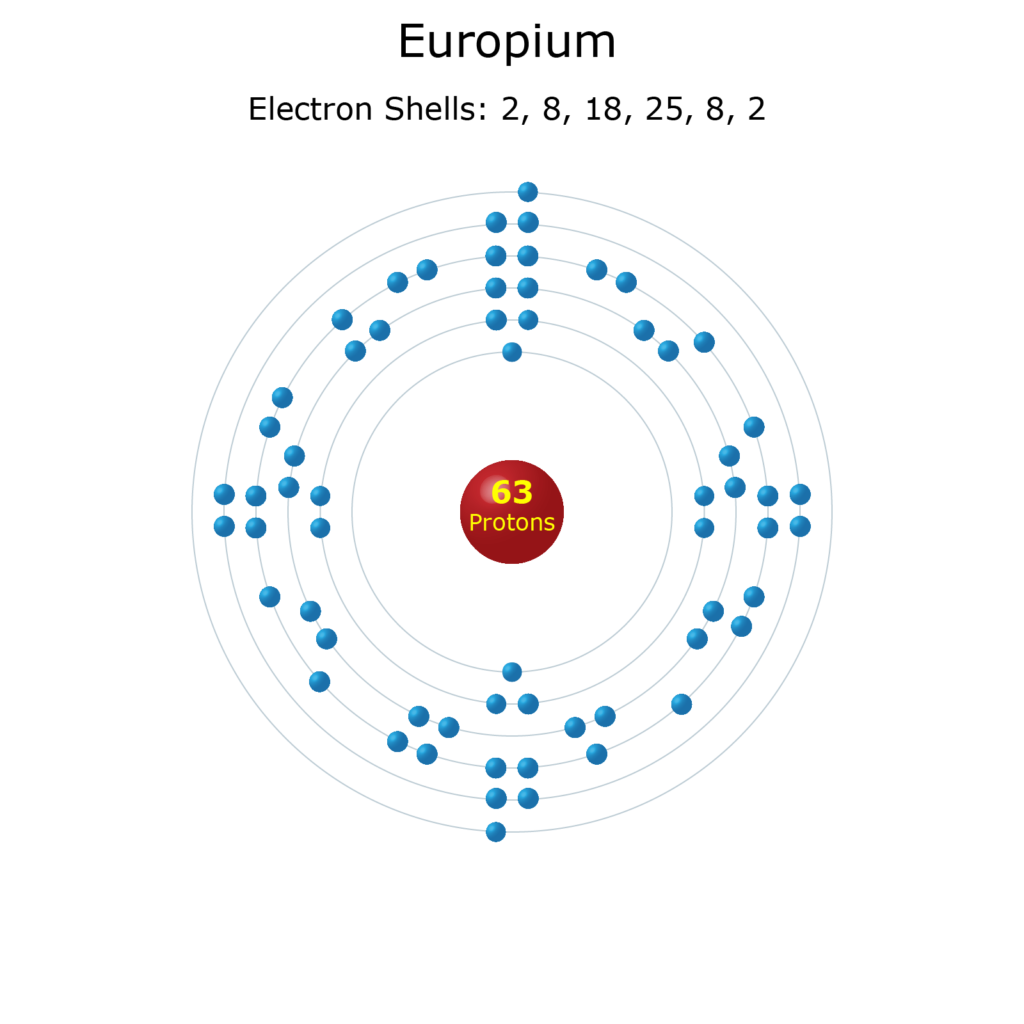

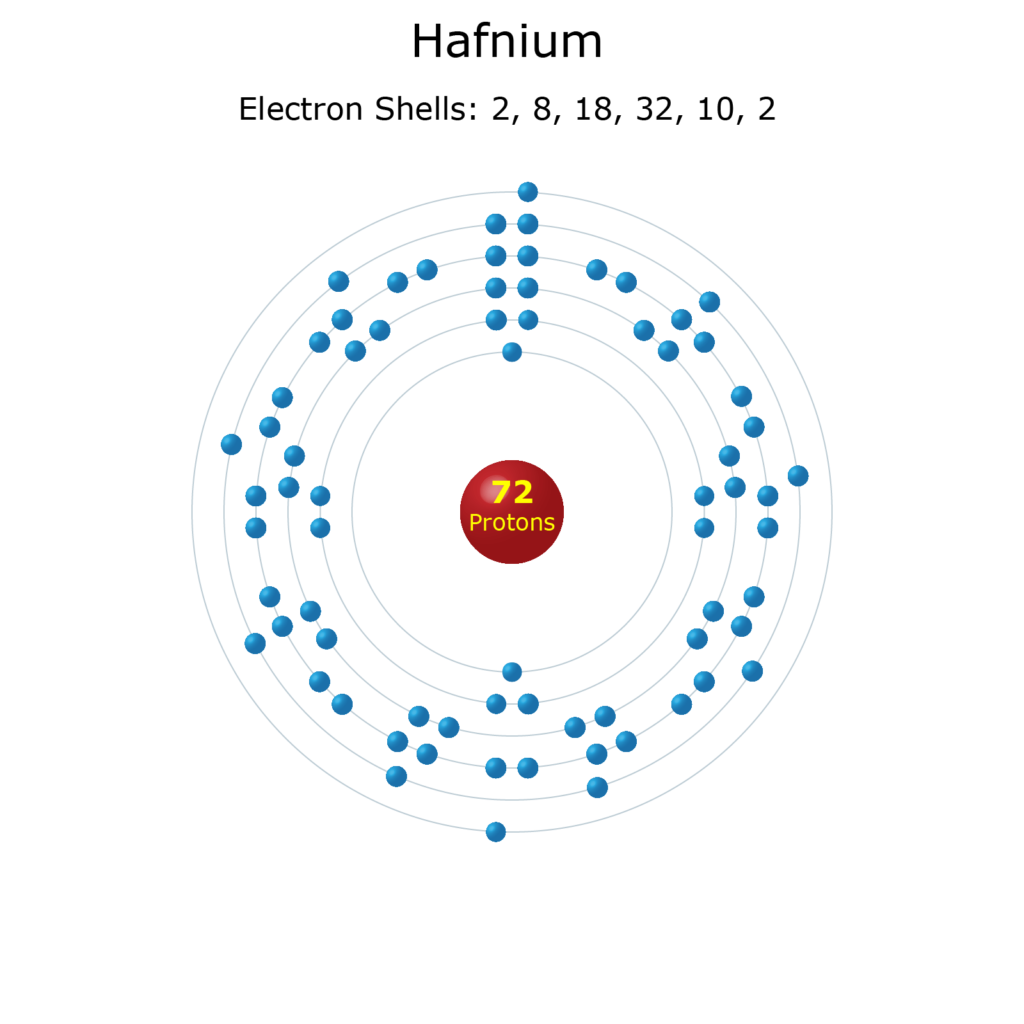

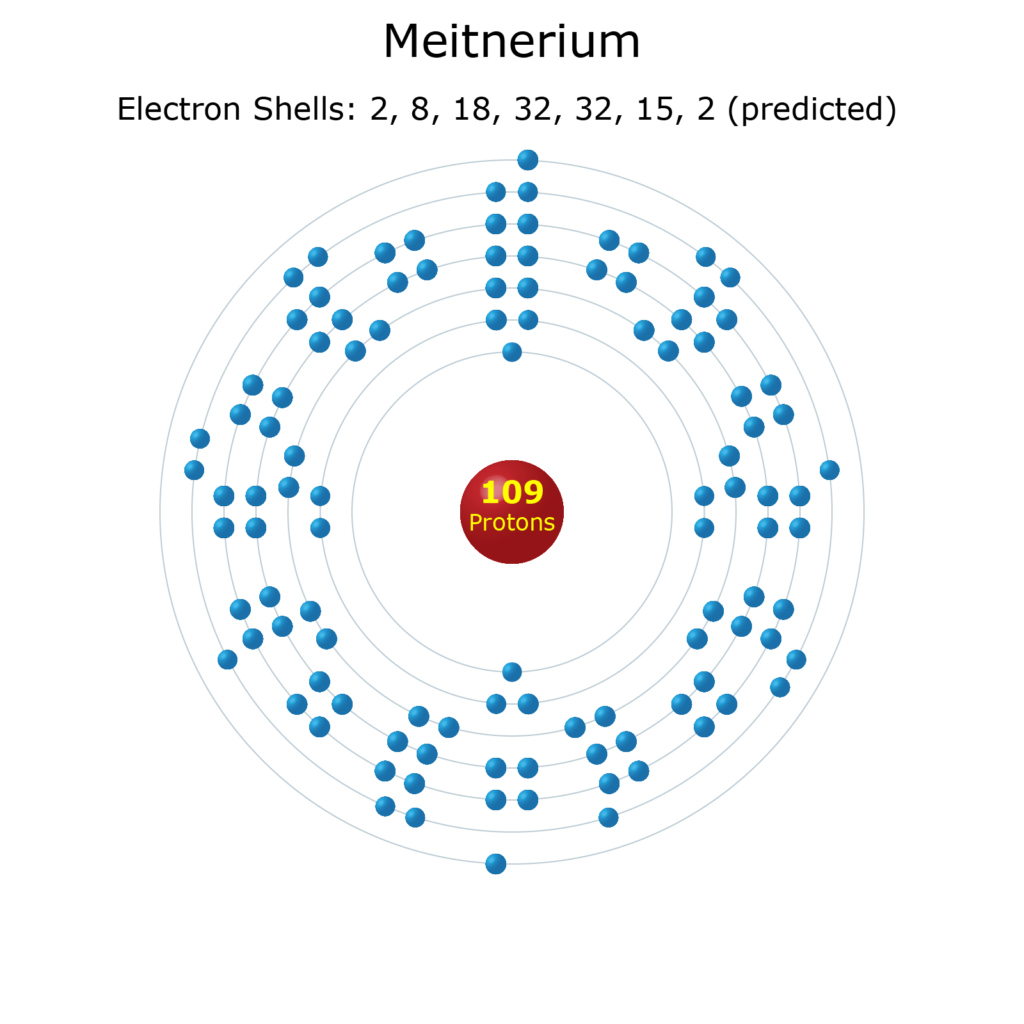

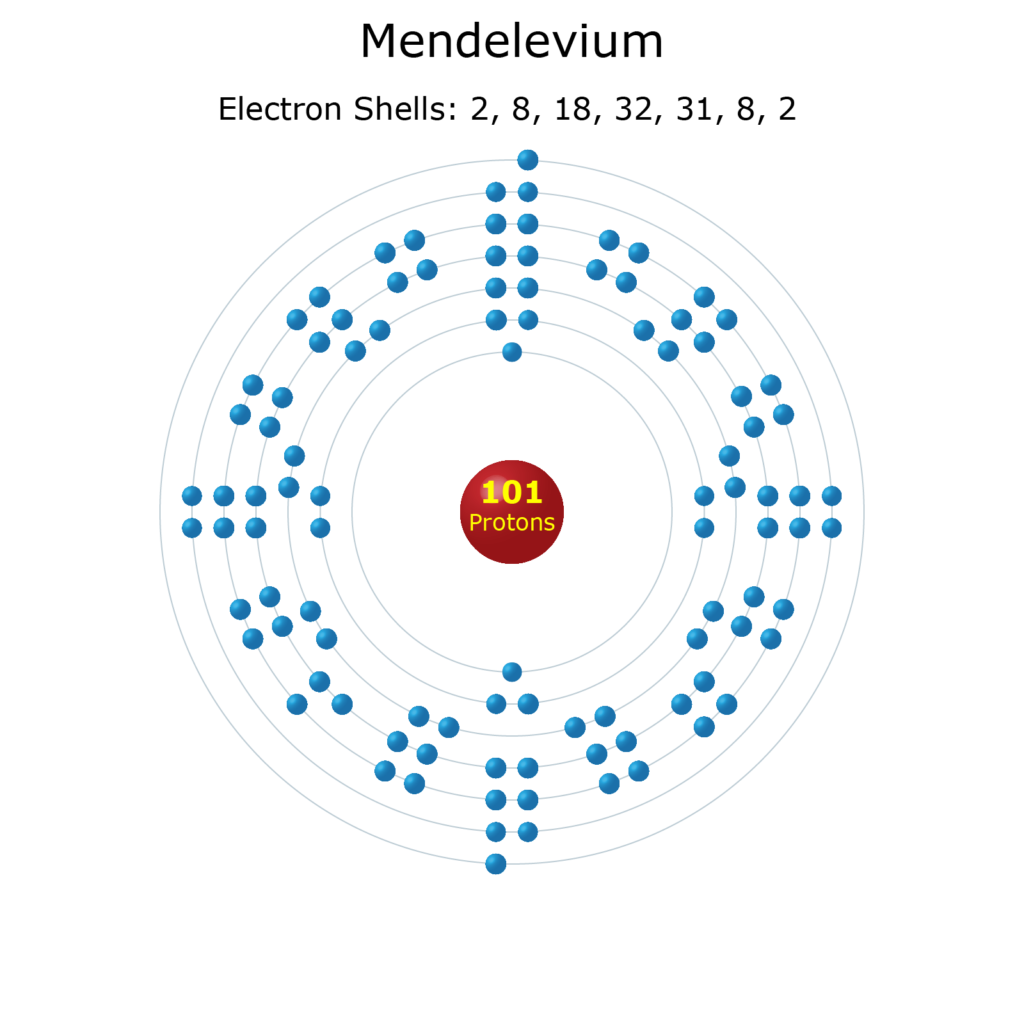

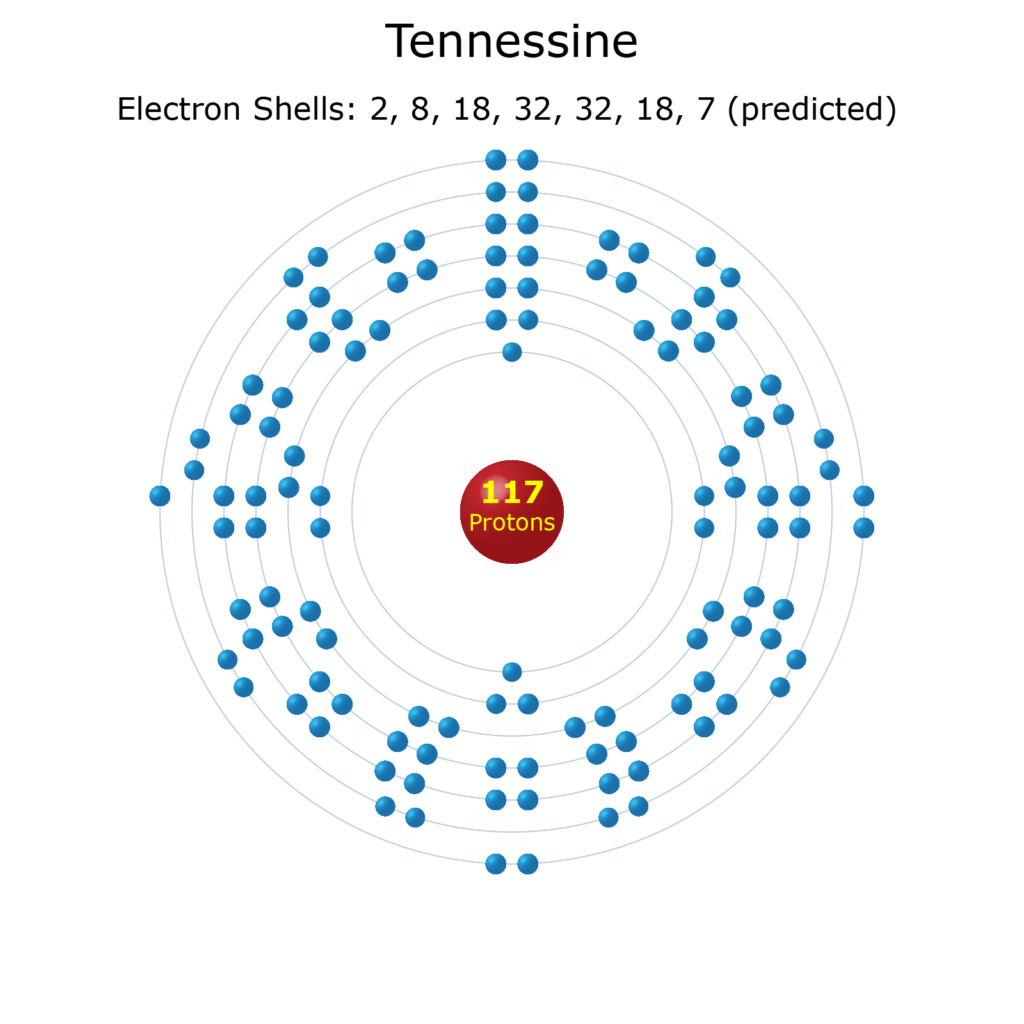

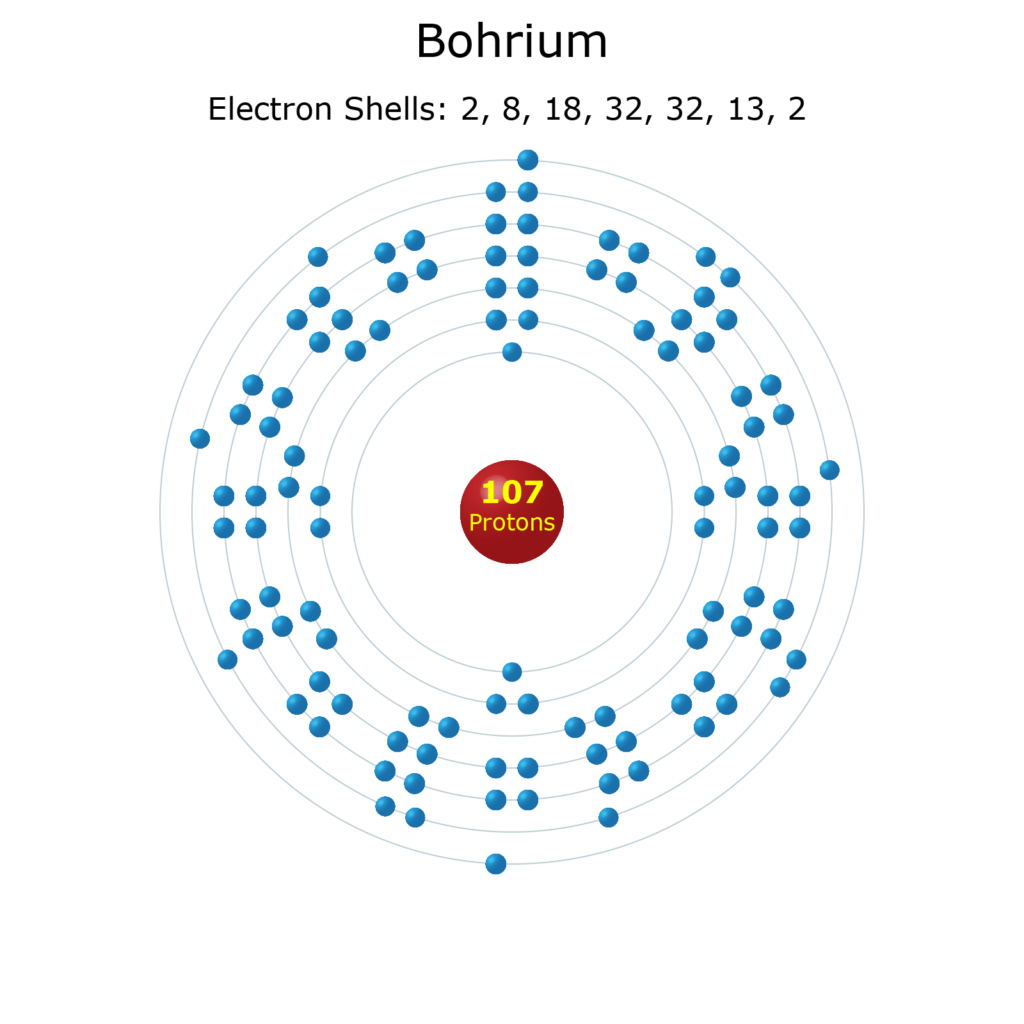

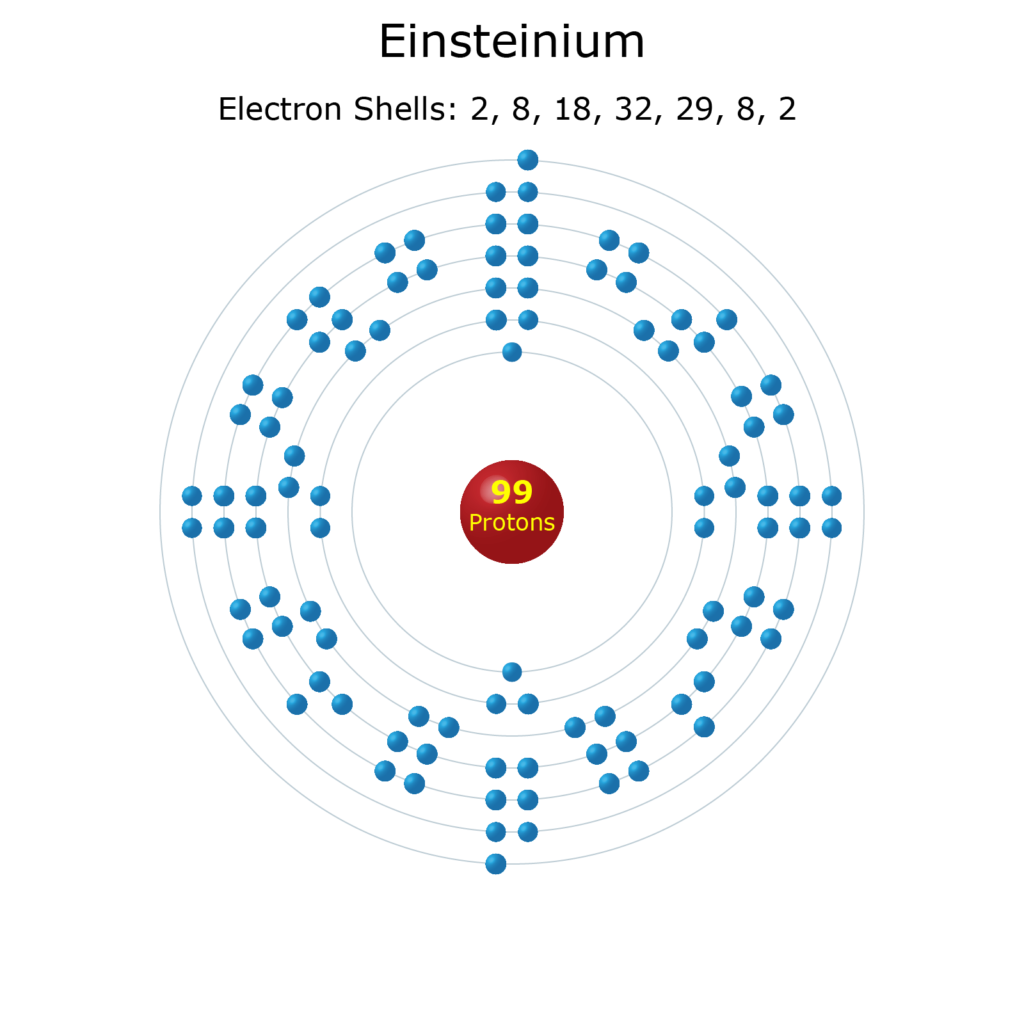

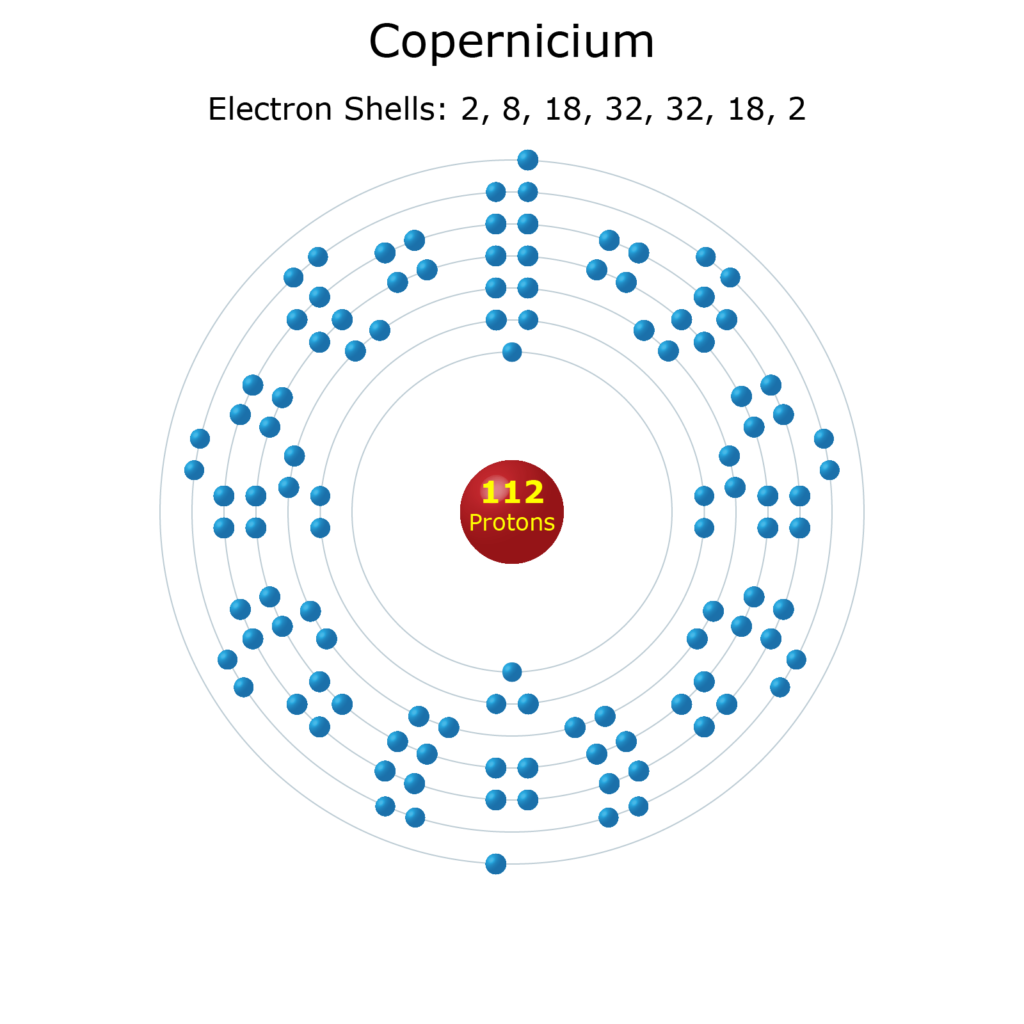

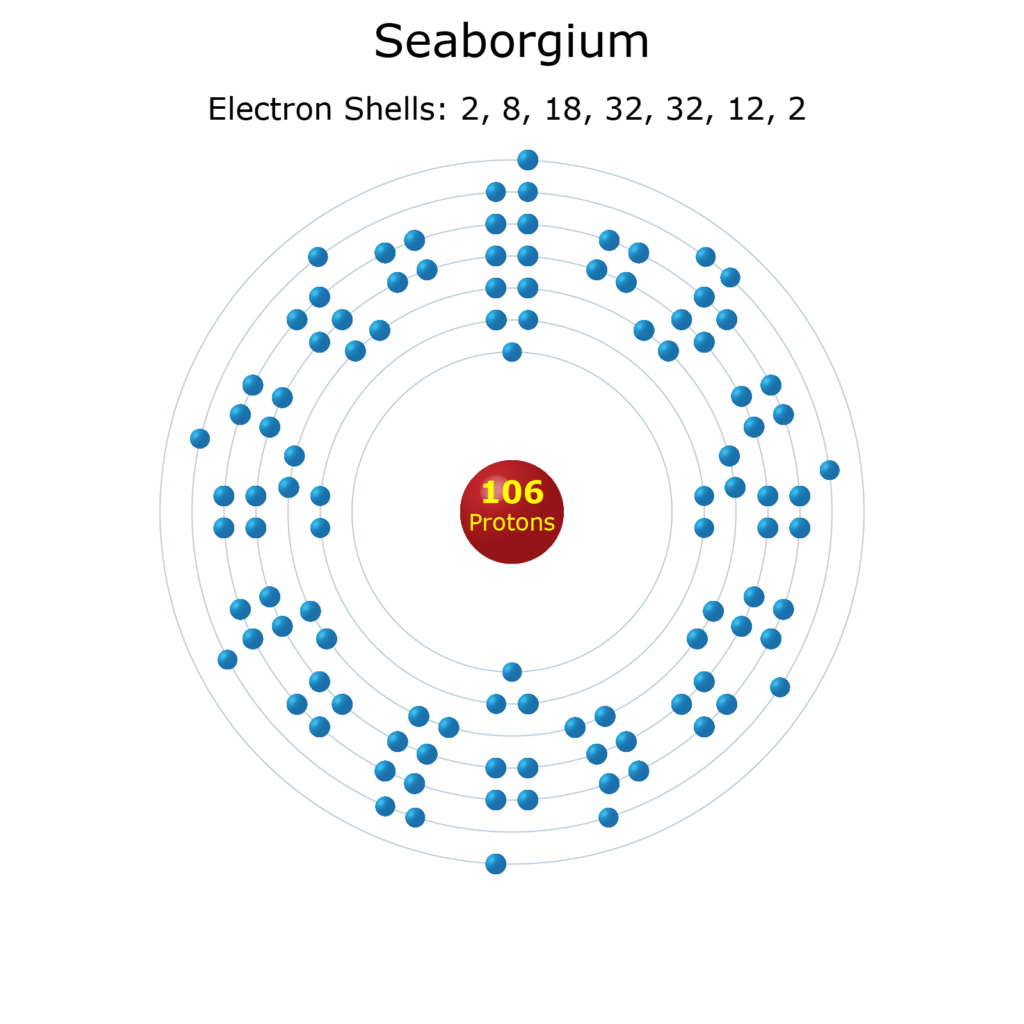

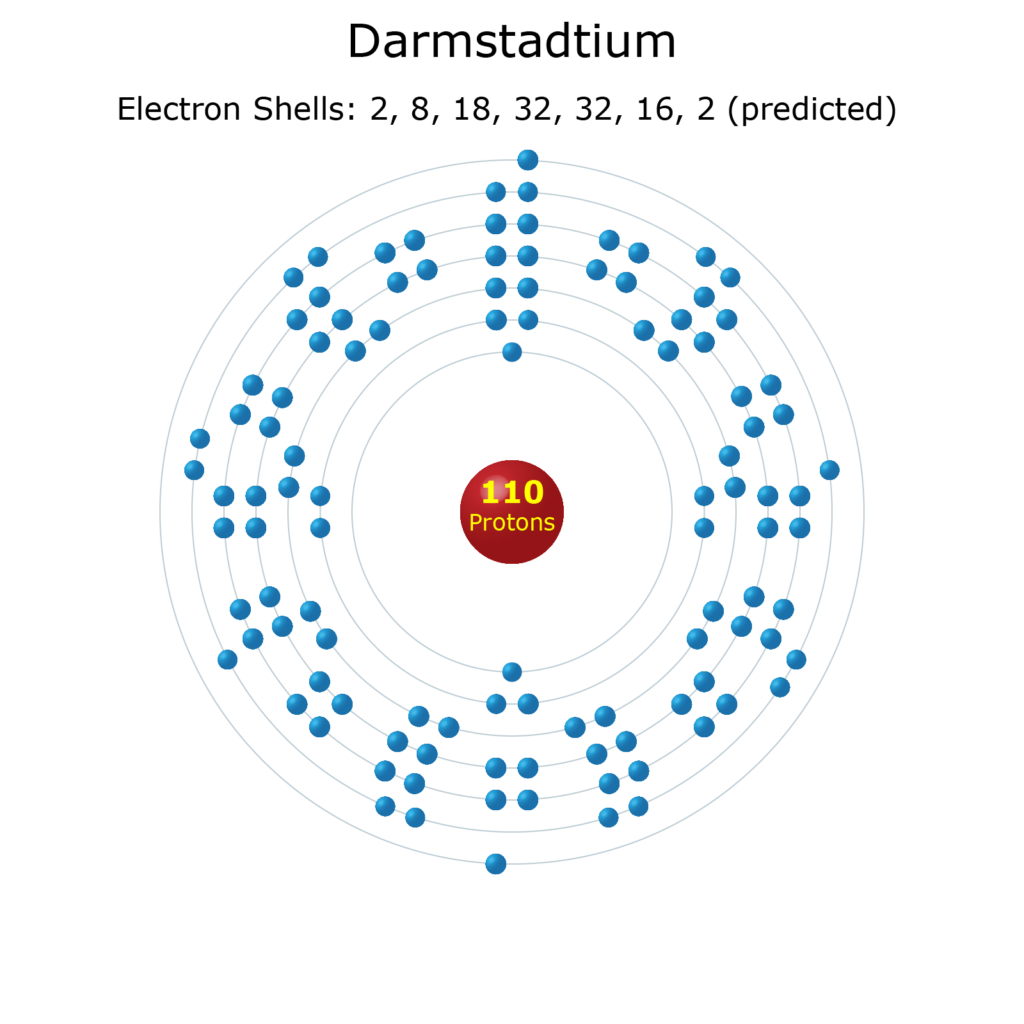

This is a collection of the electron shell diagrams of all 118 elements. Each element’s atom is shown with the number of protons in the nucleus with shells of electrons filled by energy levels. The lowest energy level is closest to the nucleus. The numbers appearing under the element names is the number of electrons in each energy level from lowest to highest.

Click the image to see a larger version.
