The Thomson effect is a thermoelectric phenomenon in which a current-carrying conductor or semiconductor either absorbs or releases heat when a temperature gradient exists along its length. It is one of the three fundamental thermoelectric effects, alongside the Seebeck and Peltier effects, and plays an important role in thermoelectric theory, temperature measurement, and energy conversion devices.
Key Takeaways: Thomson Effect
- The Thomson effect occurs when electric current flows through a material that has a temperature gradient.
- Depending on the material and current direction, heat is either absorbed or evolved along the conductor.
- The effect was discovered by William Thomson (Lord Kelvin) in 1851.
- The Thomson effect is characterized by the Thomson coefficient (τ).
- A positive Thomson coefficient means current flowing from hot to cold absorbs heat.
- A negative Thomson coefficient means current flowing from hot to cold releases heat.
- The Thomson effect is one of the three thermoelectric effects, along with the Seebeck and Peltier effects.
- It is distinct from the Joule-Thomson effect, which involves gas expansion rather than electrical conduction.
What Is the Thomson Effect?

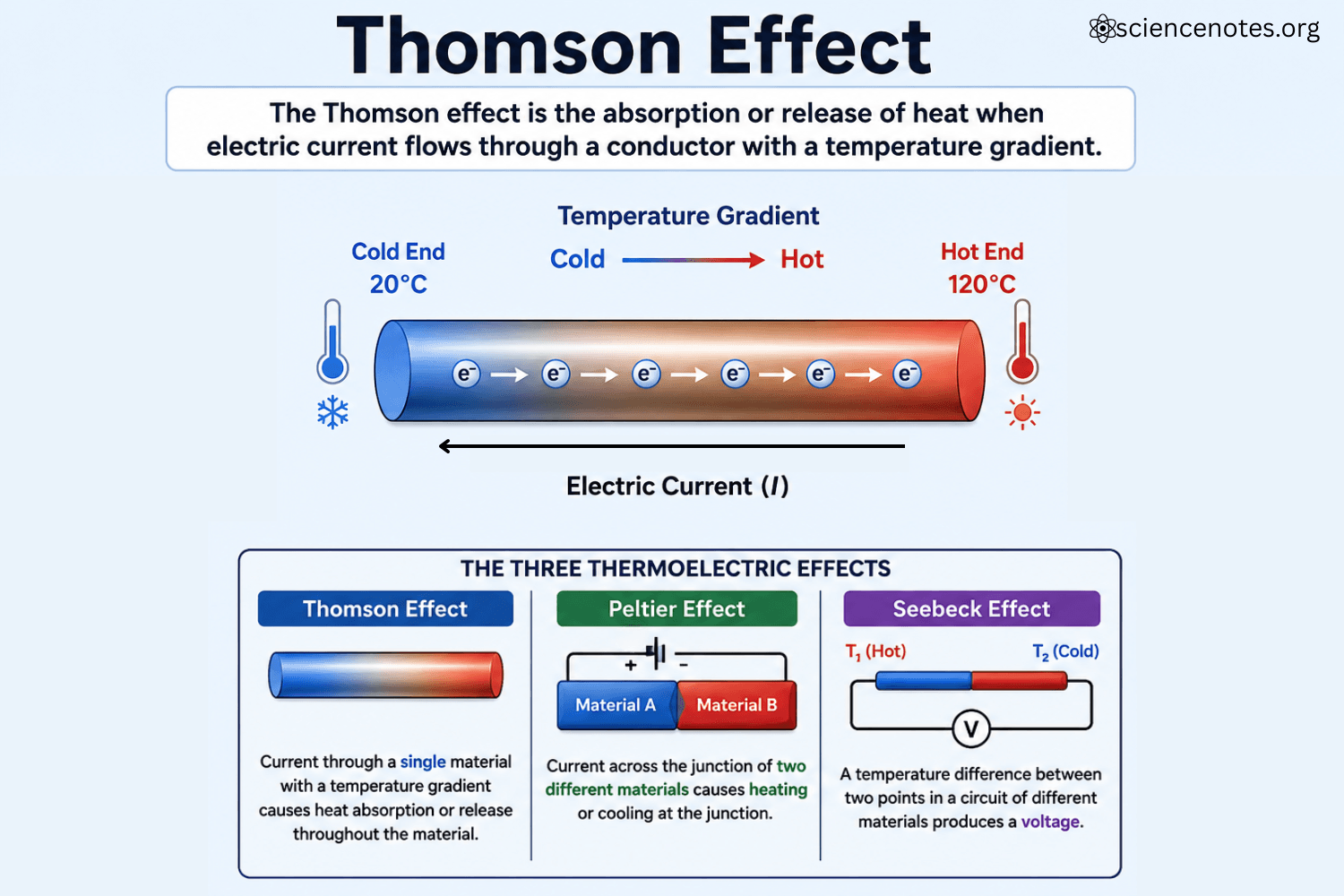

The Thomson effect is the reversible heating or cooling of a conductor when electric current passes through it in the presence of a temperature gradient.
Suppose one end of a metal wire is hot and the other end is cold. If an electric current flows through the wire, heat is either absorbed or produced throughout the material beyond the ordinary resistive heating caused by electrical resistance. This additional thermal effect is the Thomson effect.
Unlike Joule heating, which always produces heat, the Thomson effect can either heat or cool a material depending on the material properties and current direction.
The amount of heat produced or absorbed per unit time is:
q = τI(dT/dx)
where:
- q = Thomson heating or cooling rate
- τ = Thomson coefficient
- I = electric current
- dT/dx = temperature gradient
The sign of τ determines whether heat is absorbed or released.
History of the Thomson Effect
The Thomson effect was predicted and experimentally verified in 1851 by the Scottish physicist William Thomson, who later became known as Lord Kelvin.
At the time, scientists already knew about two related thermoelectric phenomena:
- The Seebeck effect (1821), discovered by Thomas Johann Seebeck.
- The Peltier effect (1834), discovered by Jean Charles Athanase Peltier.
Thomson demonstrated that these effects were not independent phenomena. Instead, he showed that they arise from the same underlying thermodynamic principles.
Using thermodynamics, Thomson derived mathematical relationships connecting all three effects. These relationships are now known as the Kelvin relations, which remain fundamental to thermoelectric theory.
How the Thomson Effect Works
The Thomson effect originates from changes in the energy carried by charge carriers as they move through regions of different temperature.
In a conductor, electrons transport both electrical charge and thermal energy. The average energy of these electrons depends on temperature.
When current flows through a material with a temperature gradient:
- Electrons moving toward warmer regions gain energy.
- Electrons moving toward cooler regions lose energy.
- The energy exchange with the crystal lattice appears as heating or cooling.
The process is reversible because reversing the current direction reverses the heat flow.
This distinguishes the Thomson effect from ordinary resistive heating, which always converts electrical energy into heat regardless of current direction.
Positive and Negative Thomson Effects
Materials can exhibit either a positive or negative Thomson coefficient.
Positive Thomson Effect
A material has a positive Thomson coefficient when current flowing from the hot end to the cold end causes heat absorption.
Examples include:
- Zinc
- Iron
- Platinum (at many temperatures)
In these materials:
- Hot → cold current produces cooling.
- Cold → hot current produces heating.
Negative Thomson Effect
A material has a negative Thomson coefficient when current flowing from the hot end to the cold end releases heat.
Examples include:
- Copper
- Silver
- Gold
In these materials:
- Hot → cold current produces heating.
- Cold → hot current produces cooling.
Why the Sign Changes
The sign depends on how electron energy varies with temperature within a specific material. Different electronic structures lead to different Thomson coefficients.
Because the coefficient changes with temperature, some materials can even switch sign at certain temperatures.
Thomson Coefficient
The strength of the effect is described by the Thomson coefficient (τ).
The Thomson coefficient is defined as the reversible heat absorbed or evolved per unit current and per unit temperature difference.
Common units are:
V/K (volts per kelvin)
or equivalently:
W/(A·K)
The coefficient varies with:
- Material composition
- Temperature
- Crystal structure
- Impurity levels
Typical values are small, making the Thomson effect difficult to observe without careful measurements.
Relationship to the Seebeck and Peltier Effects
The Thomson effect is one of the three thermoelectric effects.
| Effect | What Causes It? | What Happens? |
|---|---|---|
| Seebeck effect | Temperature difference | Produces a voltage |
| Peltier effect | Current across a junction | Heating or cooling at the junction |
| Thomson effect | Current through a temperature gradient | Heating or cooling throughout the material |
The three effects are linked through Kelvin’s thermodynamic relations.
For example:
Π = ST
where:
- Π = Peltier coefficient
- S = Seebeck coefficient
- T = absolute temperature
Another Kelvin relation connects the Thomson coefficient to the temperature dependence of the Seebeck coefficient:
τ = T(dS/dT)
These relationships allow scientists to predict one thermoelectric property from another.
Applications of the Thomson Effect
Although the Thomson effect is generally weaker than the Seebeck and Peltier effects, it is important in thermoelectric science and engineering.
Thermoelectric Generator Design
Engineers include Thomson heating and cooling when modeling thermoelectric generators.
Ignoring the effect can introduce errors in efficiency calculations, especially over large temperature differences.
Thermoelectric Coolers
High-performance thermoelectric cooling devices account for Thomson heating because it affects temperature distributions within the materials.
Precision Temperature Measurement
The Thomson effect contributes to the behavior of thermocouples and other temperature-sensing devices.
Accurate thermoelectric calibration often requires Thomson-effect corrections.
Material Characterization
Researchers measure the Thomson coefficient to investigate:
- Electronic structure
- Charge transport
- Thermoelectric performance
Energy Harvesting Research
Modern thermoelectric materials aim to convert waste heat into electricity more efficiently. Understanding Thomson heating helps optimize these systems.
Thomson Effect vs Joule Heating
The Thomson effect is often confused with ordinary resistive heating.
| Thomson Effect | Joule Heating |
|---|---|
| Reversible | Irreversible |
| Depends on current direction | Independent of current direction |
| Requires temperature gradient | Does not require temperature gradient |
| Can heat or cool | Always heats |
| Thermodynamic effect | Resistive energy loss |
Joule heating follows:
P = I²R
and always produces positive heat.
The Thomson effect can either add to or partially offset Joule heating.
Thomson Effect vs Joule-Thomson Effect
Despite their similar names, these effects are entirely different.
| Thomson Effect | Joule-Thomson Effect |
|---|---|
| Involves electric current | No electric current required |
| Occurs in conductors and semiconductors | Occurs in gases and liquids |
| Requires temperature gradient | Requires pressure drop |
| Thermoelectric phenomenon | Fluid thermodynamics phenomenon |
| Discovered by Lord Kelvin | Also studied by Lord Kelvin and James Prescott Joule |
The Joule-Thomson effect describes temperature changes when a real gas expands through a valve or porous plug without exchanging heat with its surroundings.
It is the principle behind many gas liquefaction and refrigeration processes.
Common Misconceptions
The Thomson Effect Is the Same as the Joule-Thomson Effect
The two effects are unrelated except for sharing Lord Kelvin’s name.
The Thomson Effect Always Produces Heat
The effect can either absorb heat or release heat depending on the Thomson coefficient and current direction.
The Effect Occurs Only at Junctions
Unlike the Peltier effect, the Thomson effect occurs throughout a single material.
The Thomson Effect Is Just Joule Heating
Joule heating is irreversible resistive heating. The Thomson effect is a reversible thermoelectric phenomenon.
Only Metals Exhibit the Thomson Effect
Semiconductors also exhibit the Thomson effect and often show larger thermoelectric responses than metals.
Frequently Asked Questions (FAQs)
Who discovered the Thomson effect?
Lord Kelvin (William Thomson) discovered and explained the effect in 1851.
What causes the Thomson effect?
It results from charge carriers exchanging energy with the material as they move through a temperature gradient.
Does the Thomson effect occur in a uniform-temperature wire?
No. A temperature gradient is required.
Is the Thomson effect reversible?
Yes. Reversing the current direction reverses the heating or cooling.
Which materials have a positive Thomson coefficient?
Examples include zinc, iron, and platinum over many temperature ranges.
Which materials have a negative Thomson coefficient?
Examples include copper, silver, and gold.
Why is the Thomson effect important?
It helps explain thermoelectric phenomena, improves thermoelectric device design, and contributes to accurate temperature measurements.
Is the Thomson effect used in refrigerators?
Not directly. Most thermoelectric refrigerators primarily rely on the Peltier effect, although the Thomson effect influences their performance.
The Thomson Effect in Context
The Thomson effect completes the trio of classical thermoelectric phenomena. While it is less familiar than the Seebeck or Peltier effects, it provides a crucial link between them and reveals how electricity, heat, and matter interact at a fundamental level. By describing reversible heating and cooling within a single material, the Thomson effect remains an essential concept in thermodynamics, solid-state physics, and modern energy-conversion technology.
References and Further Reading
- Besançon, Robert M. (1985). Besançon, Robert M. (ed.). The Encyclopedia of Physics (3rd ed.). Van Nostrand Reinhold. doi:10.1007/978-1-4615-6902-2. ISBN 0-442-25778-3.
- Goldsmid, H Julian (20171). The Physics of Thermoelectric Energy Conversion. Morgan & Claypool Publishers. doi:10.1088/978-1-6817-4641-8. ISBN 978-1-68174-641-8.
- Rowe, D.M., ed. (2006). Thermoelectrics Handbook: Macro to Nano. Taylor & Francis. doi:10.1201/9781420038903. ISBN 0-8493-2264-2.
- Thomson, William (1851). “On a mechanical theory of thermo-electric currents”. Proceedings of the Royal Society of Edinburgh. 3 (published 1857): 91–98. doi:10.1017/S0370164600027310
