In geology, faults are fractures or zones of fractures in Earth’s crust along which blocks of rock have moved relative to one another. They form when tectonic stresses exceed the strength of rocks, causing brittle failure or long-term ductile deformation. Faults accommodate plate motion, reshape landscapes, influence the distribution of earthquakes and volcanoes, control groundwater flow, and concentrate valuable mineral resources. From small fractures measured in centimeters to major plate-boundary systems hundreds of kilometers long, faults are fundamental structures for understanding how Earth’s crust evolves.
Key Takeaways: Faults
- A fault is a fracture (or fracture zone) where rocks on either side have moved.
- Faults form due to tectonic stress from plate motion, gravity, or changes in pressure and temperature.
- Movement along faults can be sudden (earthquakes) or slow (creep).
- Faults are classified by the direction of movement, such as normal, reverse, thrust, and strike-slip faults.
- Fault zones often contain fault rock (breccia, gouge, cataclasite, mylonite).
- Faults strongly influence groundwater flow, ore deposition, land stability, and human infrastructure.
What Is a Fault?
A fault is a planar or curved fracture in rock along which there has been measurable displacement. The displacement may be vertical, horizontal, or a combination of both. Faults differ from simple joints because joints show no significant movement.
How Faults Form and Progress
Formation
Faults form when stress builds up in rock due to:
- Tectonic plate motion (compression, tension, shear)
- Gravitational forces (for example, slope failure)
- Magma intrusion or crustal loading or unloading
When stress exceeds rock strength, the rock fractures. If movement occurs along the fracture, a fault is created.
Progression Over Time
Faults are not single events. They:
- May reactivate repeatedly over millions of years
- Can evolve from narrow fractures into broad fault zones
- Accumulate strain gradually and release it suddenly during earthquakes
- Transition from brittle behavior near the surface to ductile deformation at depth
Key Fault Terminology
Geologists use specific terms when discussing faults:
- Fault line: The surface trace where a fault intersects Earth’s surface. It is not the fault itself, but its visible expression.
- Fault zone: A band of related fractures and deformed rock surrounding a fault plane, often meters to kilometers wide.
- Slip: The total amount of movement along a fault, measured as displacement between two originally adjacent points.
- Throw: The vertical component of slip.
- Heave: The horizontal component of slip measured perpendicular to the fault trace.
- Hanging wall: The block of rock above an inclined fault plane.
- Footwall: The block of rock below an inclined fault plane.
Classification of Fault Types
Geologists classify faults based on the direction of movement between rock blocks and the type of stress that caused the displacement. Because fault motion can be vertical, horizontal, or a combination of both, different fault types reflect different tectonic environments and deformation processes. Understanding how faults are classified helps scientists interpret past stress conditions, identify plate boundary behavior, and assess geologic hazards.
Normal Faults
Normal faults form under tensional stress, which stretches the crust. The hanging wall moves downward relative to the footwall. These faults are common in regions where the crust is thinning.

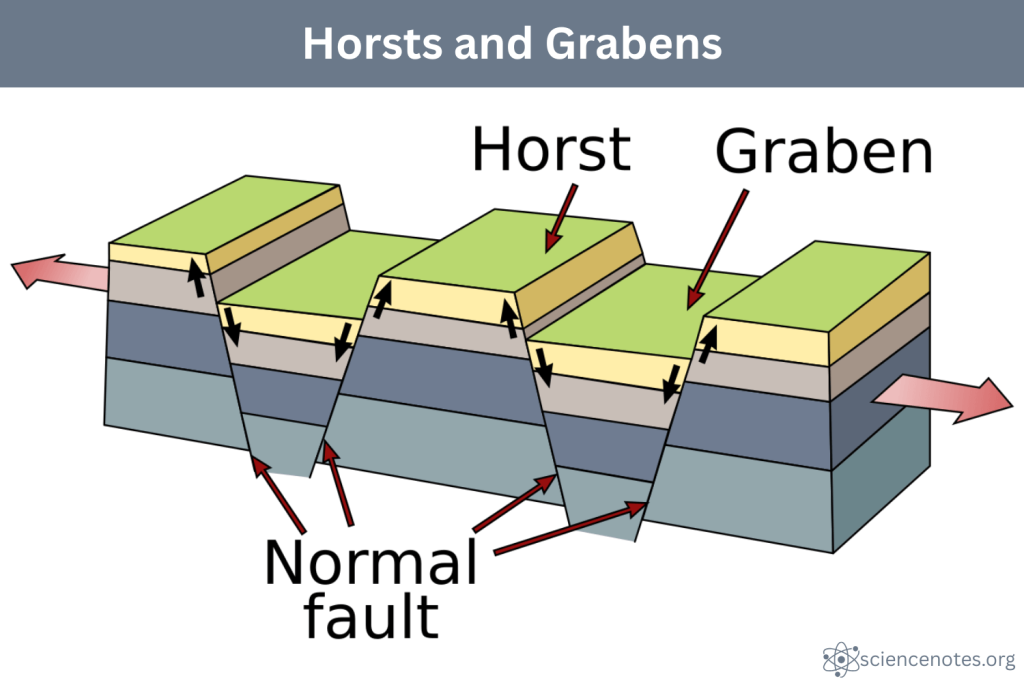

Normal faulting often produces characteristic landforms known as horsts and grabens. A graben is a down-dropped block of crust bounded by normal faults, while a horst is an uplifted block between faults. These structures are common in regions undergoing crustal extension and are responsible for the formation of rift valleys and fault-block mountain ranges.
Reverse Faults
Reverse faults form under compressional stress. The hanging wall moves upward relative to the footwall. These faults shorten and thicken the crust.
Thrust Faults
Thrust faults are a low-angle type of reverse fault. They involve large horizontal displacements and are characteristic of major mountain belts.
Strike-Slip Faults
Strike-slip faults accommodate horizontal motion caused by shear stress. They are classified as right-lateral or left-lateral based on the direction of offset.
Oblique-Slip Faults
Oblique-slip faults combine vertical and horizontal movement, reflecting complex stress conditions.
Fault Comparison Table
| Fault Type | Primary Stress | Relative Motion | Hanging Wall Movement | Typical Fault Angle | Common Settings | Key Surface Features |
|---|---|---|---|---|---|---|
| Normal fault | Tension (extension) | Vertical (dip-slip) | Moves down relative to footwall | Moderate to steep (≈45–70°) | Rifts, divergent plate boundaries, continental extension | Fault scarps, down-dropped valleys, grabens |
| Reverse fault | Compression | Vertical (dip-slip) | Moves up relative to footwall | Steep (>45°) | Compressional regions, crustal shortening | Uplifted blocks, folded strata |
| Thrust fault | Compression | Mostly horizontal (dip-slip) | Moves up and over footwall | Low angle (<30°) | Mountain belts, continental collisions | Repeated strata, older rocks over younger |
| Strike-slip fault | Shear | Horizontal (strike-slip) | No vertical preference | Near vertical | Transform plate boundaries | Offset streams, linear valleys, sag ponds |
| Right-lateral strike-slip | Shear | Horizontal | Opposite side moves right | Near vertical | Transform faults | Right-offset features |
| Left-lateral strike-slip | Shear | Horizontal | Opposite side moves left | Near vertical | Transform faults | Left-offset features |
| Oblique-slip fault | Combined stresses | Vertical + horizontal | Moves up/down and sideways | Variable | Complex plate boundaries | Offset and uplifted landforms |
| Listric fault | Tension | Vertical (curved dip-slip) | Moves downward | Steep near surface, flatter at depth | Sedimentary basins | Rotated fault blocks |
| Detachment fault | Extension | Large horizontal slip | Moves downward | Very low angle | Metamorphic core complexes | Exposed deep crustal rocks |
Tip for students: The key distinction is always how the hanging wall moves relative to the footwall, not how the land surface looks.
Fault Rock: Composition and Characteristics
Movement along faults crushes, shears, and alters rock, producing fault rock. Common types include fault breccia, fault gouge, cataclasite, and mylonite. Fault rocks are typically weaker and more permeable than surrounding rock and often show chemical alteration from circulating fluids.
Impacts of Faults
Faults influence far more than the rocks in which they form. By controlling the movement of fluids, the distribution of mineral resources, the shape of landscapes, and the occurrence of earthquakes, faults play a significant role in both natural systems and human activities. Understanding the impacts of faults helps explain patterns in groundwater availability, ore deposits, land stability, and geologic hazards.
Groundwater
Faults may act as barriers or conduits to groundwater flow. Clay-rich fault gouge can block water movement, while fractured zones may enhance permeability and create springs.
Mineral and Ore Deposits
Faults provide pathways for hydrothermal fluids and are commonly associated with concentrated mineral deposits, including gold, silver, copper, and lead-zinc ores.
Structures and Landscapes
Faulting produces distinctive landforms such as escarpments, linear valleys, and offset rivers. Repeated movement may create visible fault scarps.
Human Impacts
Faults pose hazards through earthquakes and ground displacement. They influence engineering design, land-use planning, and disaster preparedness.
Faults and Plate Boundaries
Faults are closely linked to plate tectonics, and specific fault types tend to dominate at different plate boundaries:
- Divergent boundaries are associated with normal faults as the crust stretches and thins.
- Convergent boundaries commonly feature reverse and thrust faults due to compression.
- Transform boundaries are dominated by strike-slip faults that accommodate lateral plate motion.
Understanding fault types helps explain why earthquakes and landforms vary across tectonic settings.
Active vs Inactive Faults
Fault classification as active or inactive depends on recent movement:
- Active faults have moved in the recent geologic past and are likely to move again.
- Potentially active faults show evidence of movement under current stress conditions.
- Inactive faults show no signs of recent movement and are unlikely to slip again.
Geologists assess activity using displaced rock layers, landforms, seismic records, and radiometric dating.
Fault Reactivation
Old faults sometimes become active again if stress conditions change. Reactivation explains why earthquakes can occur far from plate boundaries and why ancient structures influence modern seismicity.
Faults and Earthquake Magnitude
Earthquake magnitude depends primarily on the area of the fault that slips and the amount of displacement, not on whether the fault is visible at the surface. Small faults sometimes produce damaging local earthquakes, while large faults may release strain over long intervals.
Identifying Faults in the Field
Geologists recognize faults using features such as:
- Offset or repeated rock layers
- Polished or striated fault surfaces (slickensides)
- Fault breccia or gouge
- Linear valleys, scarps, and aligned springs
These indicators help distinguish faults from joints or folds.
Faults Beyond Earth
Faults are not unique to Earth. Normal faults occur on the Moon and Mars due to crustal extension, while thrust faults on Mercury formed as the planet cooled and contracted. Studying extraterrestrial faults helps scientists understand planetary evolution.
Common Misconceptions
- Faults are the same as fault lines.
- All faults produce earthquakes.
- Faults are always vertical.
- Earthquakes create faults rather than result from fault movement.
Frequently Asked Questions
Are all faults active?
No. Many faults are inactive or move too slowly to produce earthquakes.
Can faults move without earthquakes?
Yes. Some faults creep gradually without seismic shaking.
How deep do faults extend?
Large faults can extend tens of kilometers into the crust.
Do faults always reach the surface?
No. Some faults remain completely buried.
Glossary
Brittle deformation
Rock behavior in which stress causes fracturing rather than bending or flowing.
Cataclasis
Mechanical crushing and grinding of rock caused by movement along a fault.
Cataclasite
A cohesive fault rock formed by brittle crushing and shearing of rock fragments.
Compression
A type of stress that shortens and thickens rock.
Creep
Slow, continuous movement along a fault without producing earthquakes.
Detachment fault
A low-angle normal fault that accommodates large horizontal displacement during crustal extension.
Ductile deformation
Rock behavior in which material bends or flows without fracturing, typically at greater depths.
Fault
A fracture or zone of fractures in rock along which measurable displacement has occurred.
Fault breccia
A fault rock composed of angular rock fragments cemented together.
Fault gouge
Very fine-grained, clay-rich material produced by intense grinding along a fault.
Fault line
The surface trace where a fault intersects Earth’s surface.
Fault plane
The surface along which movement occurs during faulting.
Fault rock
Rock that has been deformed, crushed, or altered by movement along a fault.
Fault scarp
A step or steep slope at Earth’s surface formed by vertical movement along a fault.
Fault zone
A broad region of fractured and deformed rock surrounding a fault plane.
Footwall
The block of rock located below an inclined fault plane.
Hanging wall
The block of rock located above an inclined fault plane.
Heave
The horizontal component of fault displacement measured perpendicular to the fault trace.
Listric fault
A curved normal fault that becomes flatter with depth.
Mylonite
A fine-grained, foliated fault rock formed by ductile shear at depth.
Oblique-slip fault
A fault that shows both vertical and horizontal displacement.
Reverse fault
A fault formed by compression in which the hanging wall moves upward relative to the footwall.
Shear stress
Stress that causes rock bodies to slide past one another.
Slickensides
Polished or striated surfaces on a fault plane that indicate the direction of movement.
Slip
The total amount of displacement that occurs along a fault.
Strike-slip fault
A fault in which movement is primarily horizontal and parallel to the fault trace.
Tension
A type of stress that stretches and thins rock.
Thrust fault
A low-angle reverse fault with large horizontal displacement.
Throw
The vertical component of fault displacement.
References and Further Reading
- Caine, Jonathan Saul; Evans, James P.; Forster, Craig B. (1996). “Fault zone architecture and permeability structure”. Geology. 24 (11): 1025–1028. doi:10.1130/0091-7613(1996)024<1025:FZAAPS>2.3.CO;2
- Davis, George H.; Reynolds, Stephen J. (1996). Structural Geology of Rocks and Regions (2nd ed.). John Wiley & Sons. ISBN 0-471-52621-5.
- Jin-Hyuck, Choi; Paul, Edwards; Kyoungtae, Ko; Kim, Young-Seog (2016). “Definition and classification of fault damage zones: A review and a new methodological approach”. Earth-Science Reviews. 152: 70–87. doi:10.1016/j.earscirev.2015.11.006
- Lutgens, Frederick K.; Tarbuck, E.J.; Tasa, D. (illustrator) (2012). Essentials of Geology (11th ed.). Boston: Prentice Hall. ISBN 978-0321714725.
- Ohnaka, M. (2013). The Physics of Rock Failure and Earthquakes. Cambridge University Press. ISBN 978-1-107-35533-0.
